What are the MagWLED pinouts?
Internal pin-outs (for WLED configuration)
These are the standard pins and the setup in WLED.
| Pin | Function |
|---|---|
| GPIO 2 | LED Data |
| GPIO 5 | Relay (invert) |
| GPIO 9 | Button |

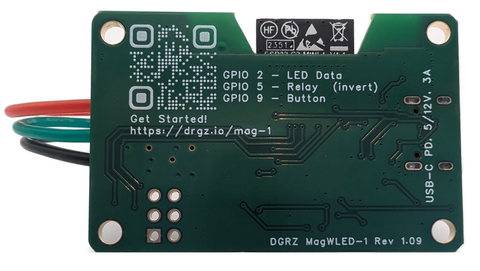

Note that this is also printed on the back of the controller!
These pins can be used for connecting sensors, buttons and microphones.
| Pin | Notes |
|---|---|
| 5V | 5V output. Max 100 mA. |
| 3.3V | 3.3V output. Max 200mA. |
| IO07 | GPIO 7 |
| IO06 | GPIO 6 (note that this might look like an 8 on the PCB) |
| IO10 | GPIO 10 |
